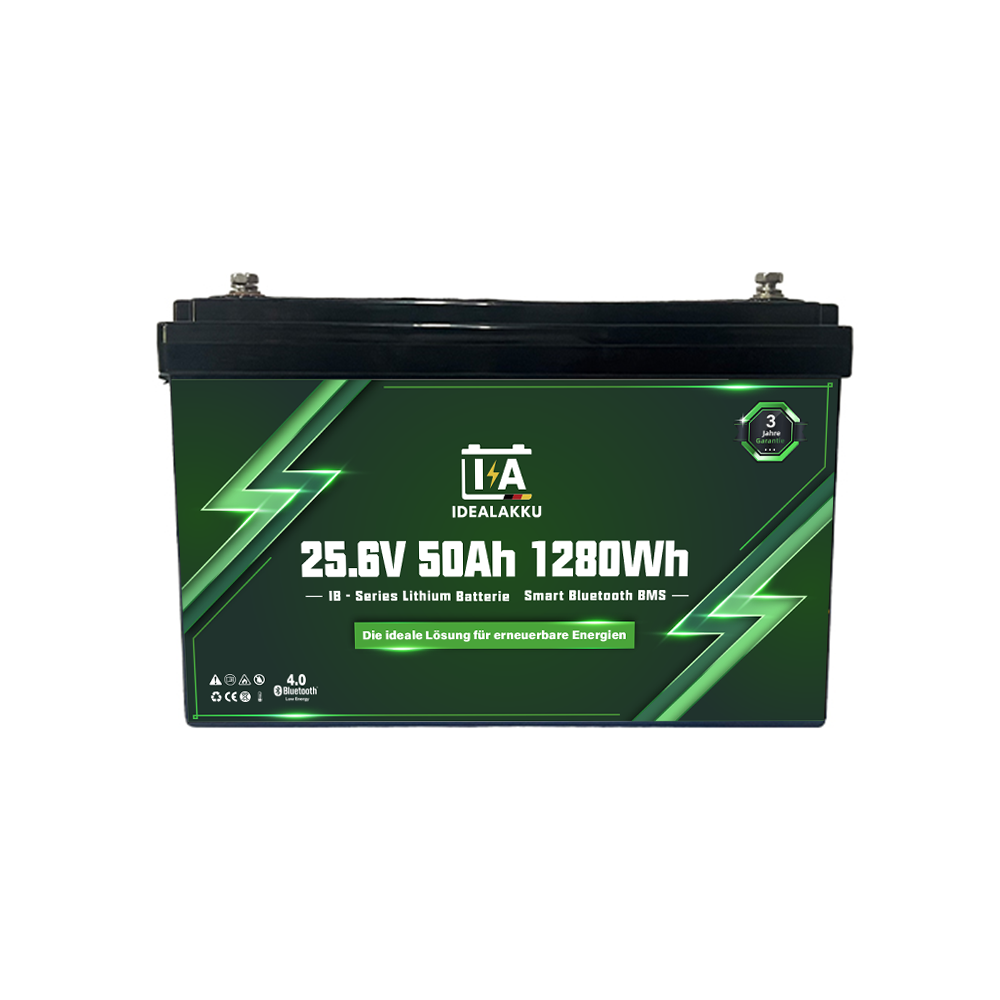

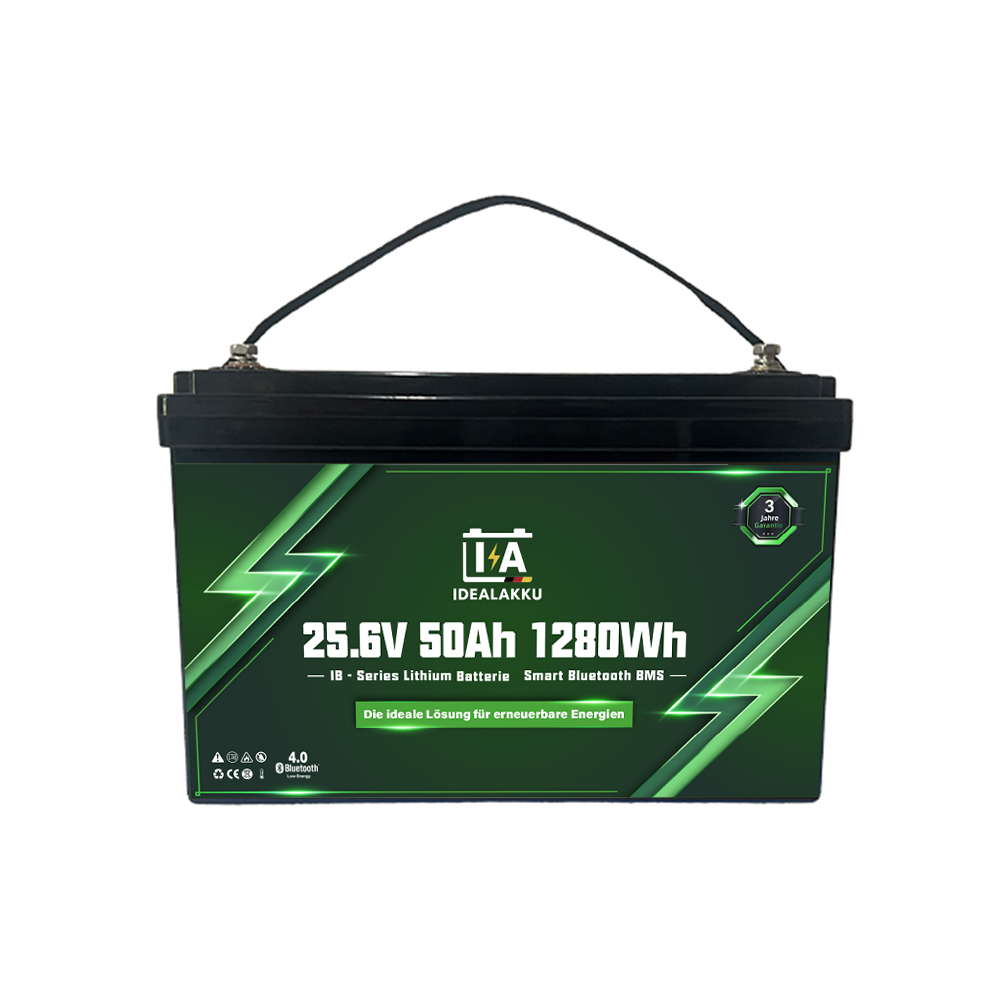

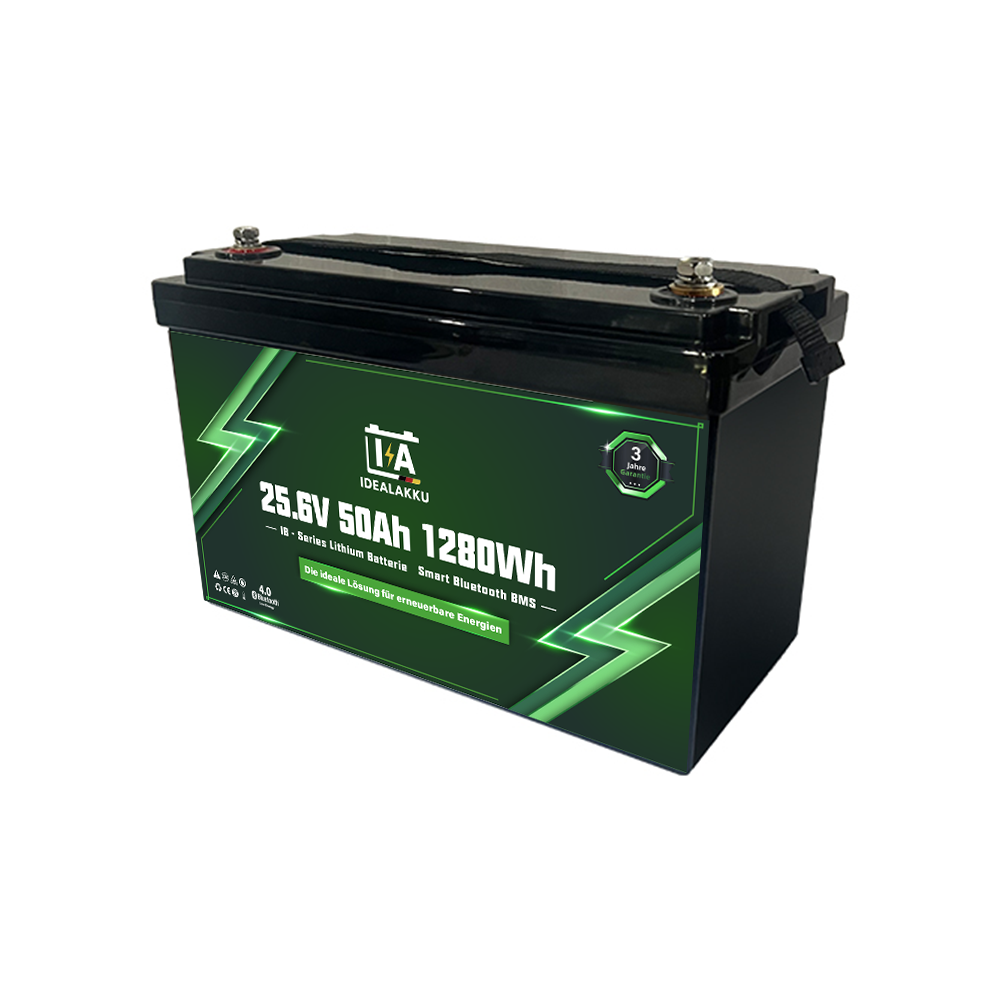

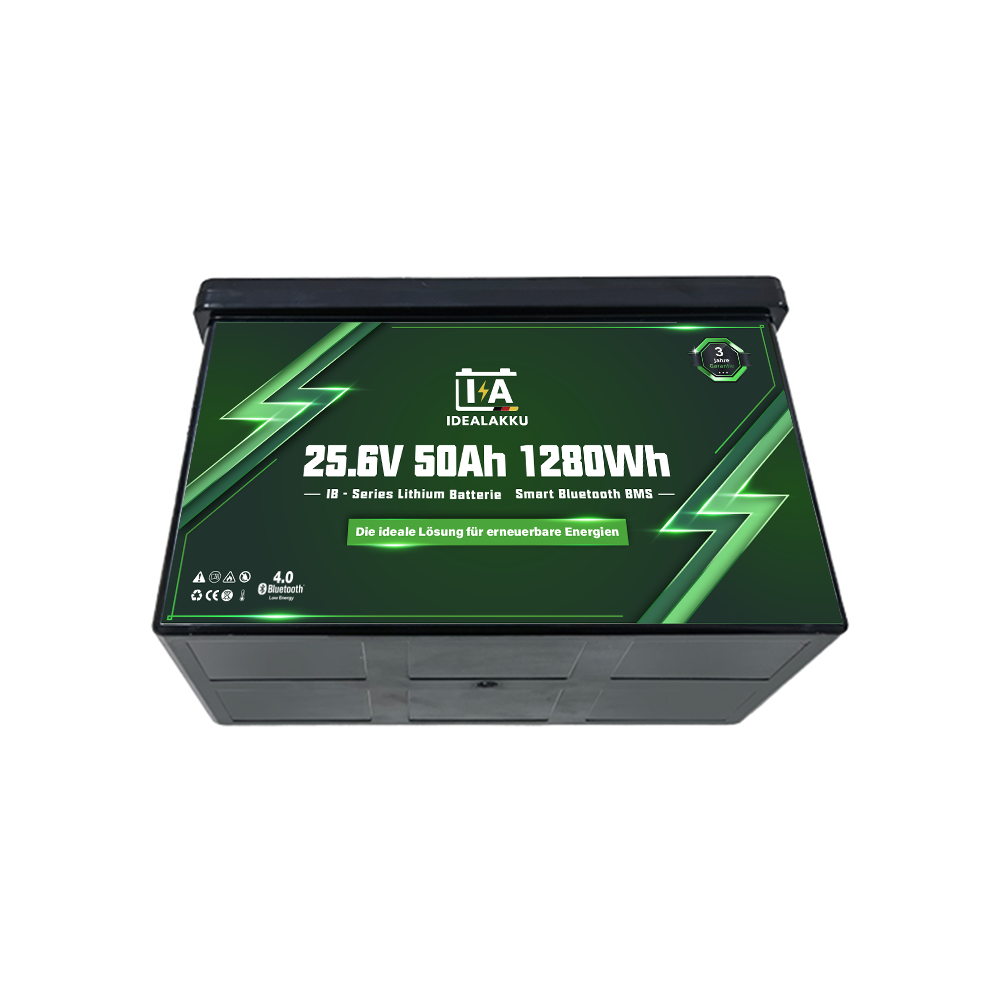

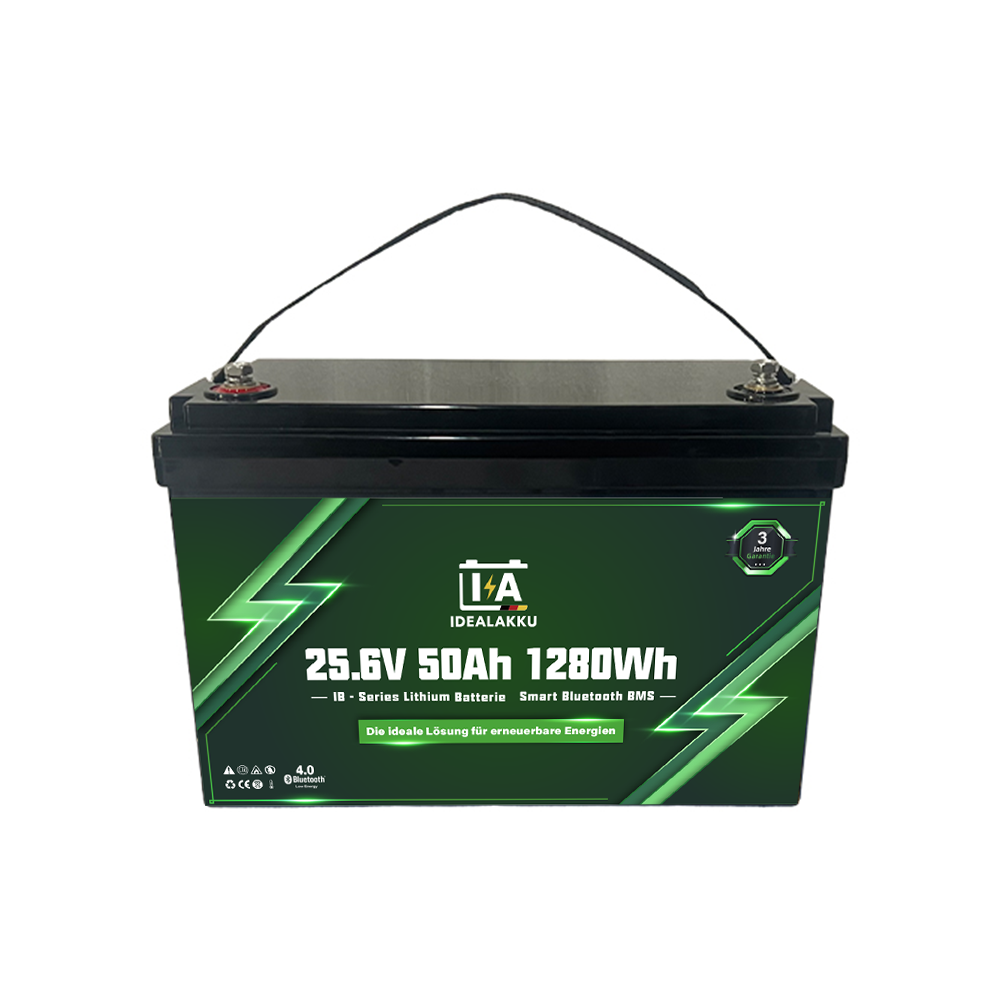

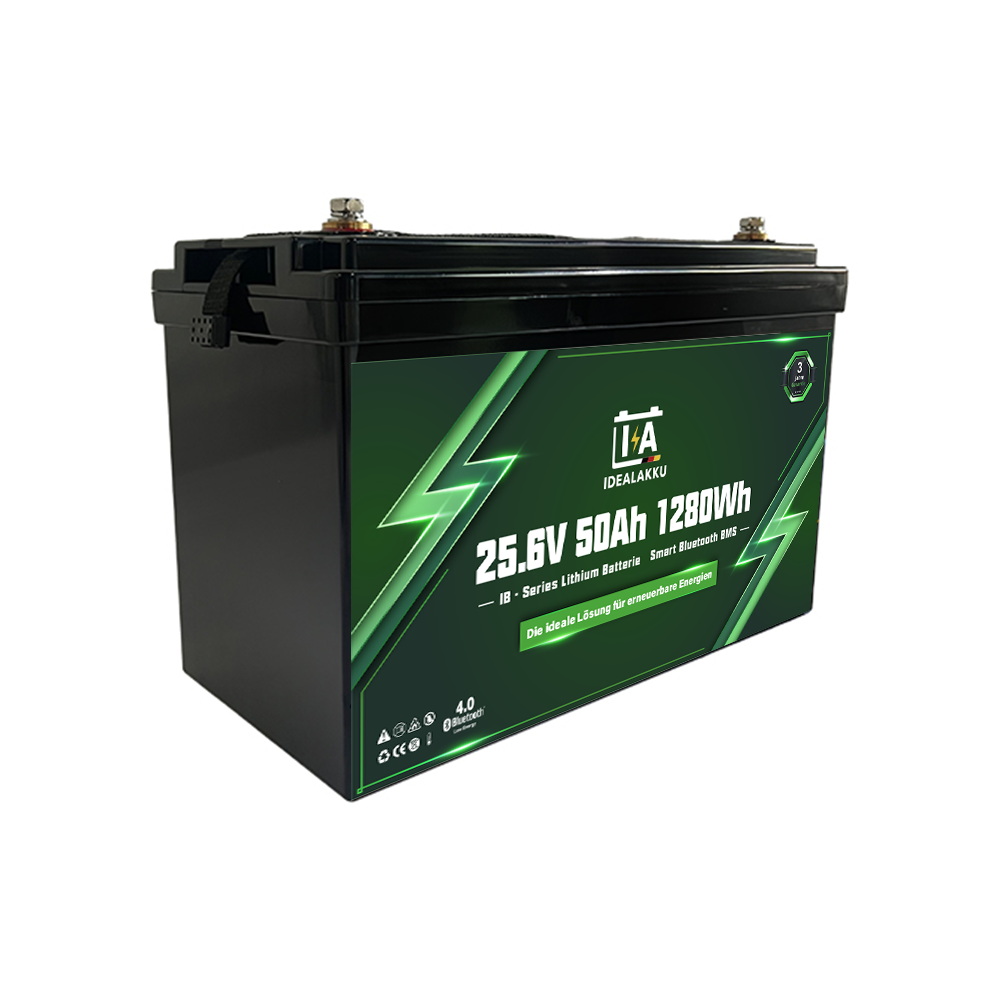

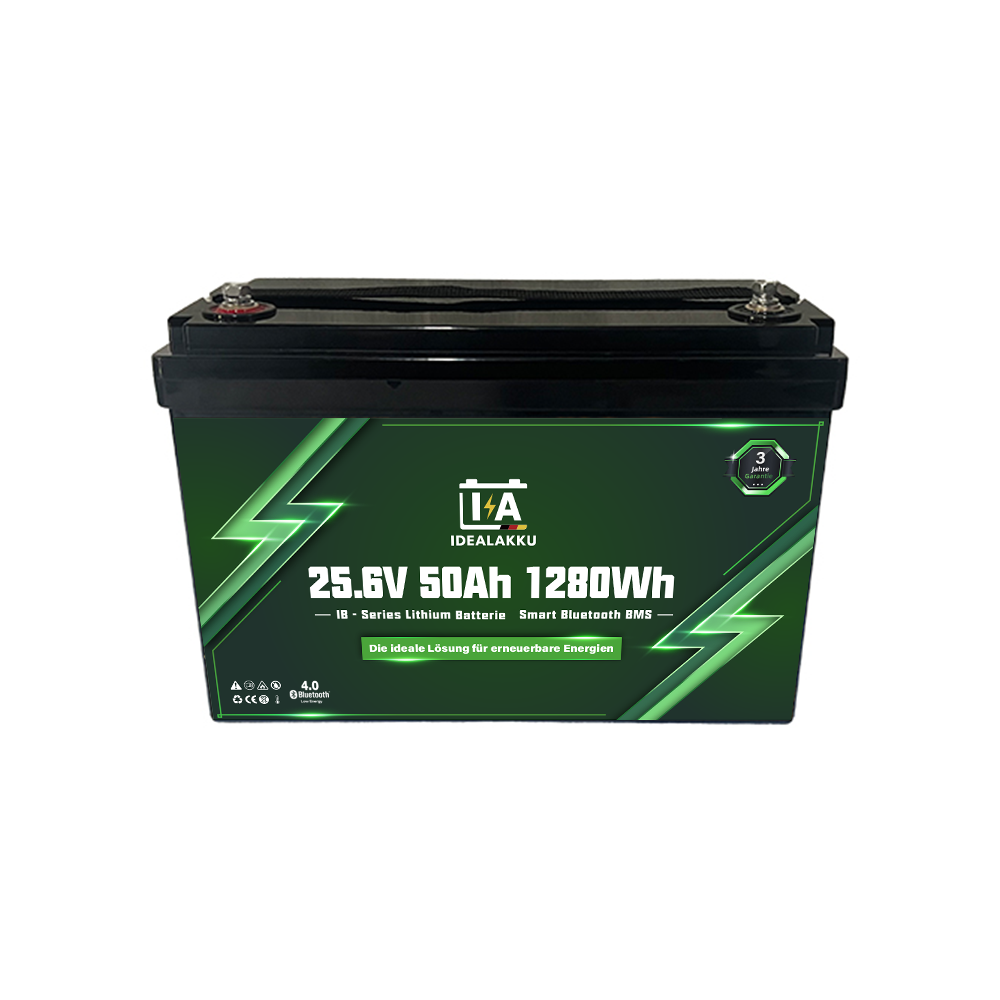

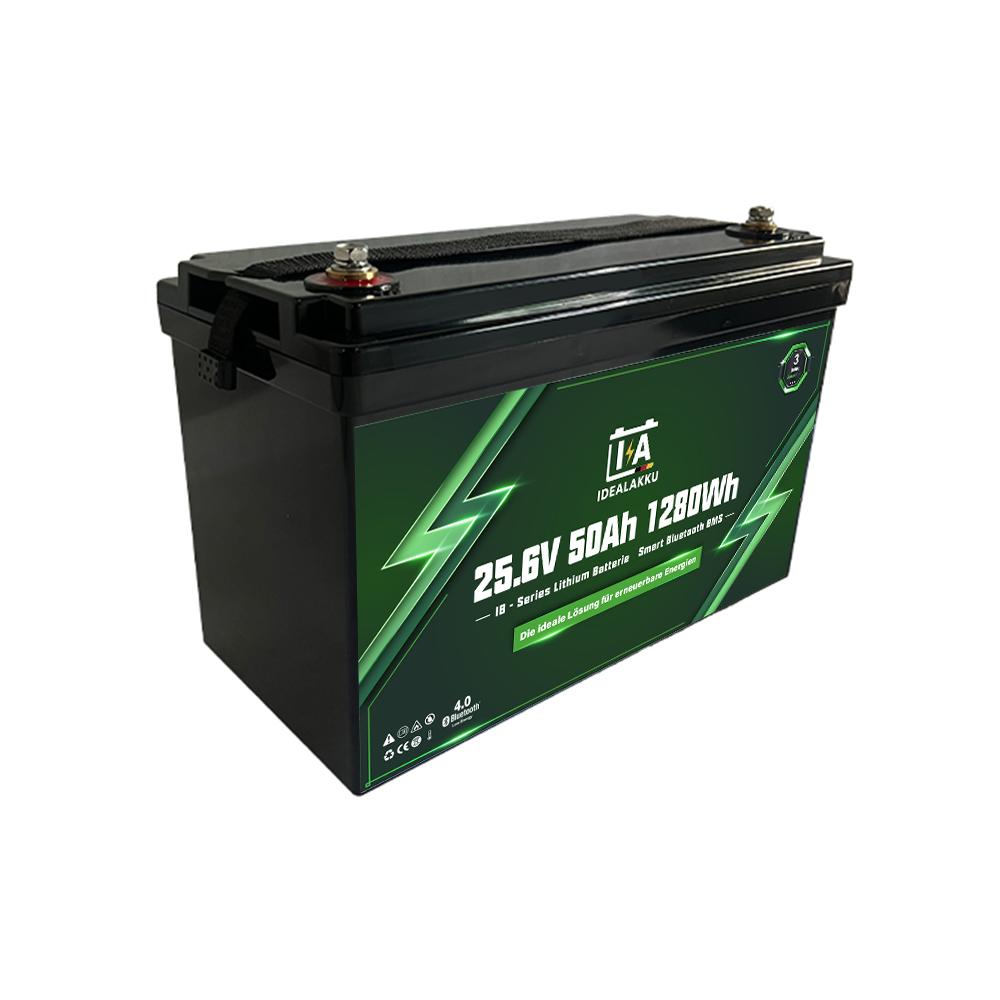

Idealakku IB SERIES Lithium Battery LiFePO4 24V 50Ah Smart BMS with Bluetooth
Technical Data Sheet
Model 25.6V 50Ah/1280Wh
Replaces Lead-AGM Gel Battery 2 x12V/100Ah (24v)
Cell Type Prismatic Cell
Dimensions with terminals (L x W x H) 330 x 172 x 215 mm
Weight (without accessories) 11.1 kg
Cycle Life >6000 @ 80% DoD
Internal Resistance ≤7 mΩ
Recommended Charging Voltage 29.2 V
Float Charge Voltage (for standby use) 27.2 V
Recommended Charging Current 15 A
Max. Charging Current 25 A
Continuous Discharge Current 80A
Peak Discharge Cut-Off Current 150A (200~500ms)
Operating Voltage Range 20 – 29.2V
End of Discharge Voltage Range 20 -22.4V

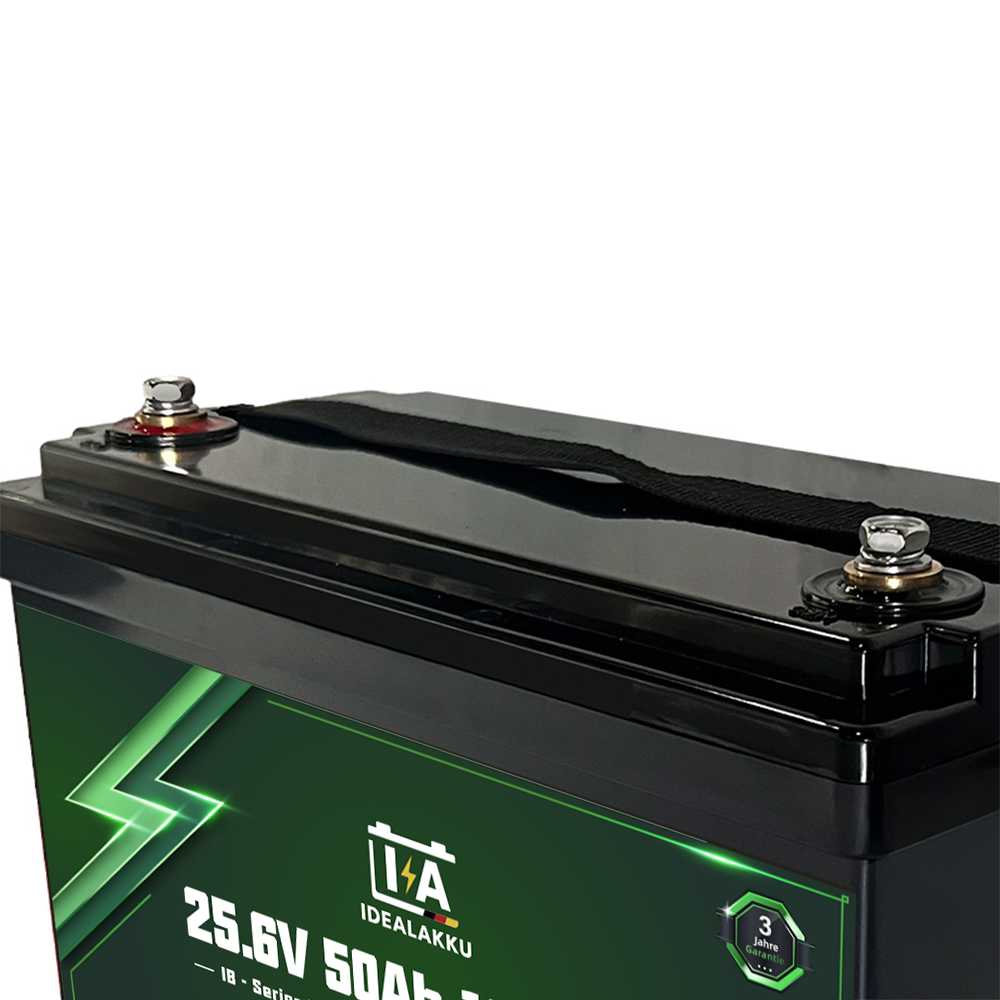

Terminal Type M8
Protection Rating IP65
Charging Temperature 0~50°C
Discharging Temperature -20~75°C
Storage Temperature -5~35°C
Storage Condition Charge the battery every 3 months
Series and Parallel Availability Maximum 2 in series and 4 in parallel
Certifications CE /UL /UN38.3 /MSDS /ROHS/UN 3480 /CLASS 9
4
βλέπουν το προϊόν αυτό τώρα!
Περιγραφή
– Class A Prismatic Battery Cell
– 100A Maximum Continuous Discharge Current
– App available on the Apple Store and Google Play
– Dimensions (L x W x H) mm: 330 × 172 × 215 mm
Strong Advantages
3-Year Warranty
Eliminates Lead-Acid Battery Directly
Lighter Weight and Easier Handling
Lithium Iron Phosphate is More Stable
Excellent Stability Even Under Extreme Load
No Memory Effect, No Full Charge and Discharge Cycles Required
Deep, Regular Charging and Discharging, and Charging Efficiency
Maximum Lifespan of Over 6000 Cycles
Durable Modular Design
Screw-in Opening, Perfectly Machined Internal Structure
