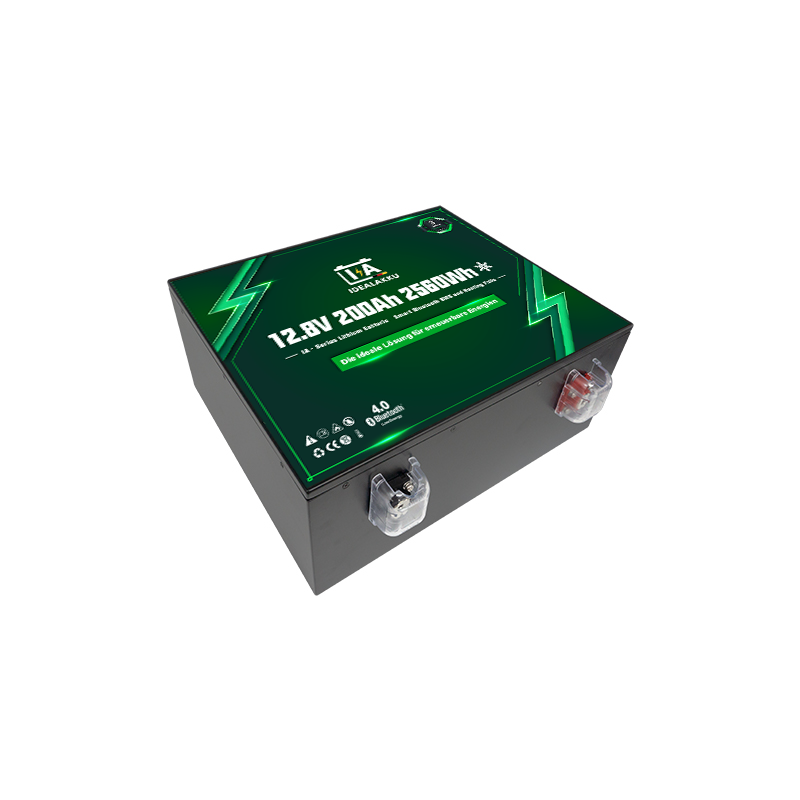

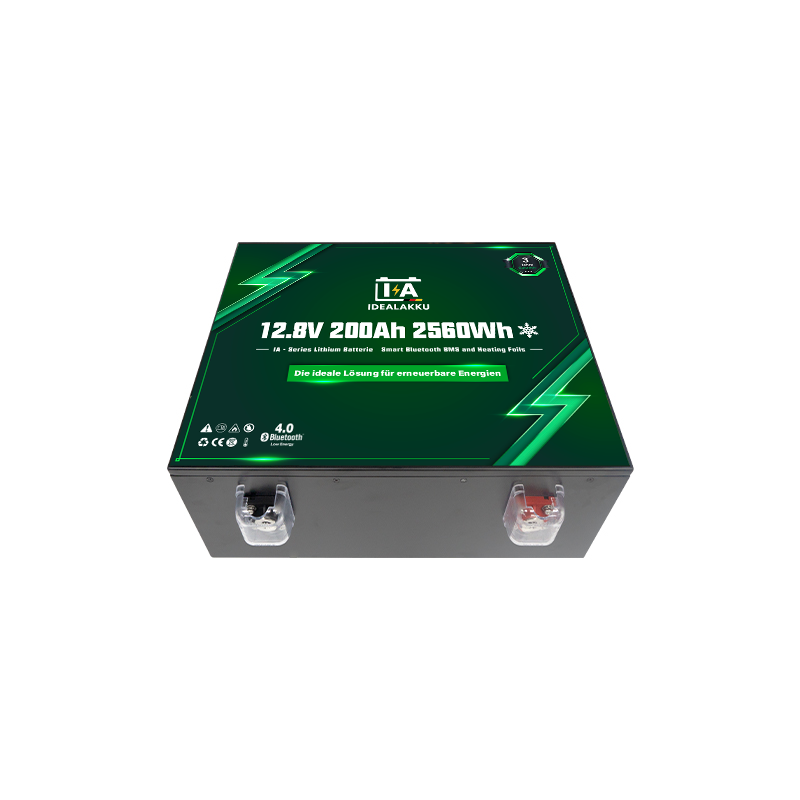

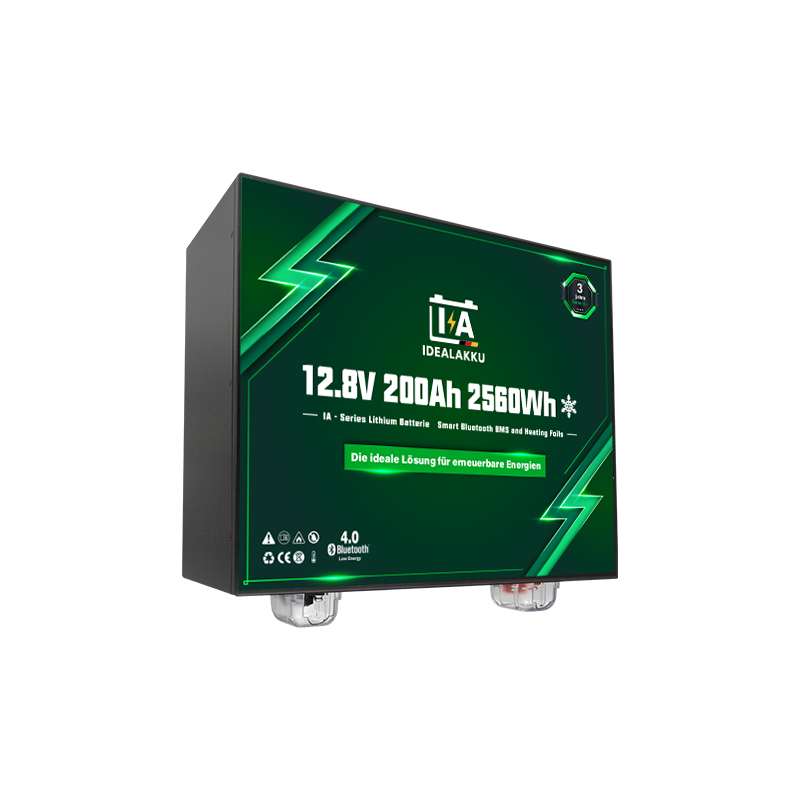

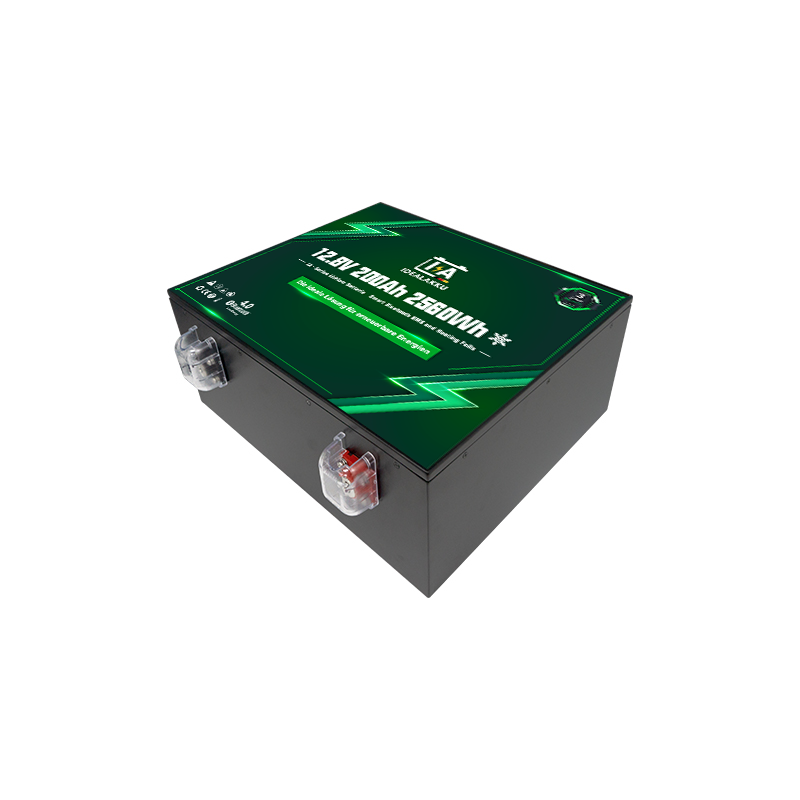

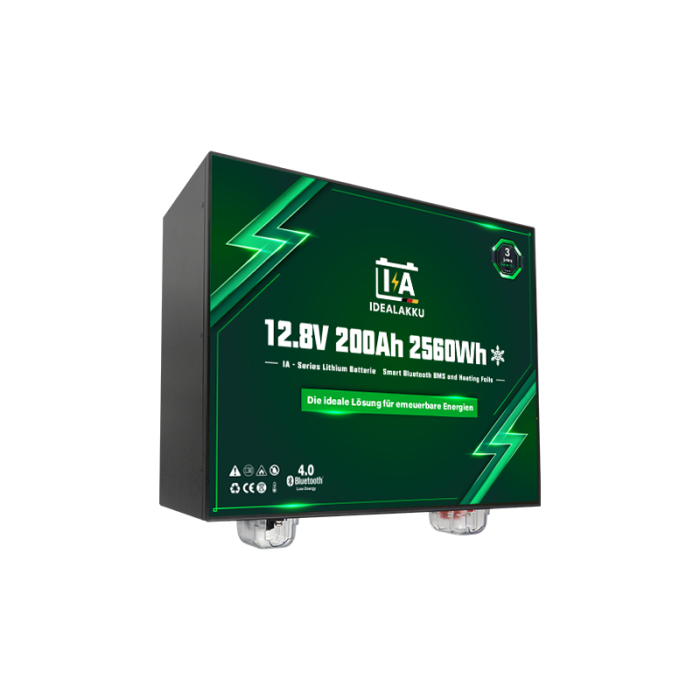

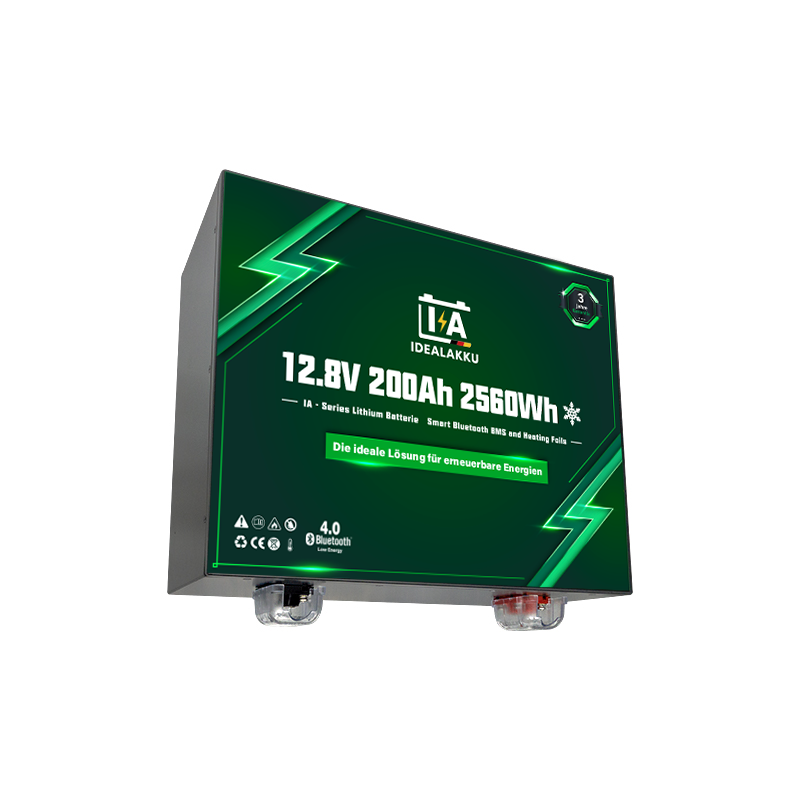

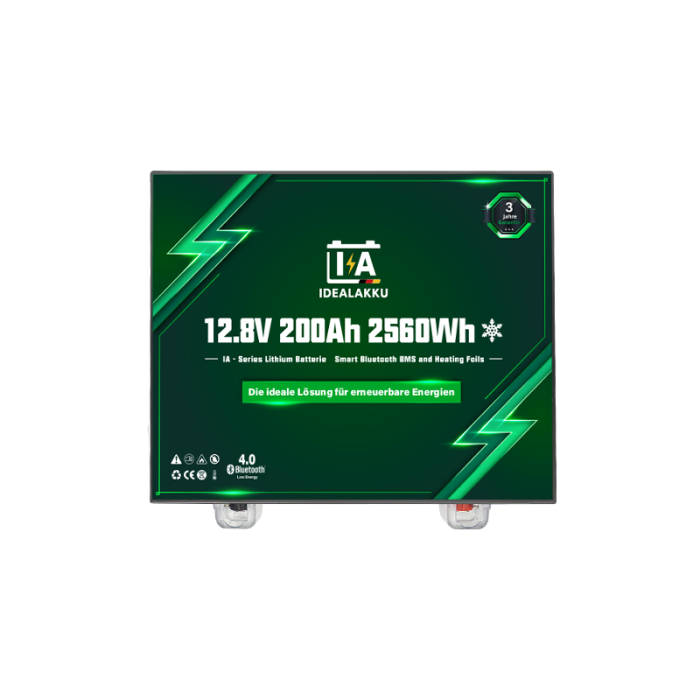

Idealakku IA SERIES Lithium Battery LiFePO4 12V 200Ah Smart BMS with Bluetooth Motorhome Under-Seat Battery with Heater
Technical Data Sheet
Model 12.8V 200Ah/2560Wh
Replaces Lead-Acid Gel AGM Battery 12.8V 400Ah
Cell Type Prismatic Cell
Dimensions with terminals (L x W x H) 357x316x152mm
Weight (without accessories) 23.3kg
Cycle life >6000@80%DoD
Internal resistance ≤7 mΩ
Recommended charging voltage 14.6V
Float charge voltage (for standby use) 13.8±0.8V
Recommended charging current 60A
Max. charging current 100A
Continuous discharge current 200A
Peak Discharge Cut-Off Current 600A (200~500ms)
Operating Voltage Range 10 – 14.6V
End of Discharge Voltage Range 9.2 – 11.2V

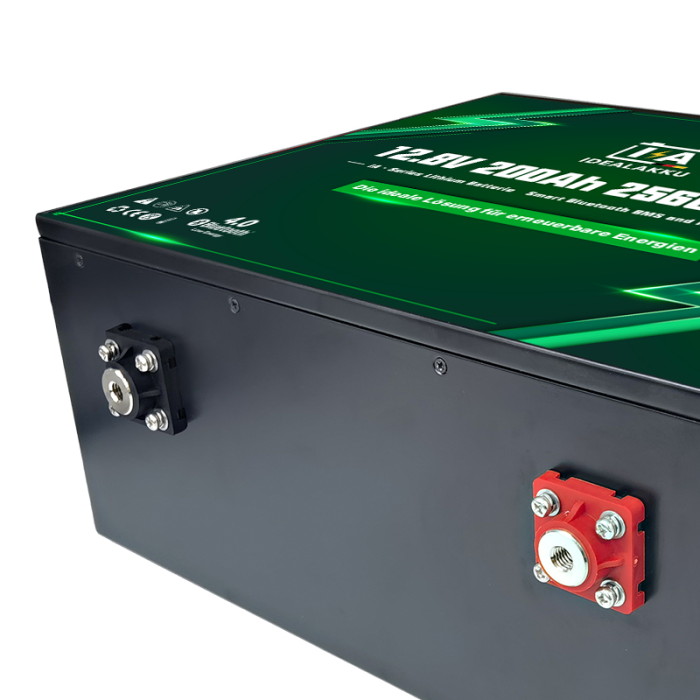

Terminal Type M8
Protection Rating IP62
Charging Temperature 0~50°C
Discharging Temperature -20~75°C
Storage Temperature -5~35°C
Heating Operating Temperature -35~5°C
Storage Condition Charge the battery every 3 months
Series and Parallel Availability Maximum 4 in series and 4 in parallel
Certifications CE /UL /UN38.3 /MSDS /ROHS /UN 3480 /CLASS 9
Strong Advantages
3-Year Warranty
Eliminates Lead-Acid Battery Directly
Lighter Weight and Easier Handling
Lithium iron phosphate is more stable
Excellent stability even under extreme loads
No memory effect, no full charge and discharge cycles required
Deep, regular charging and discharging, and charging efficiency
Maximum lifespan of over 6000 cycles
Durable modular design
Screw-in opening, perfectly crafted internal structure
– Integrated heating element, usable even in arctic temperatures down to -35°C
– Class A prismatic battery cell
– 200A maximum continuous discharge current
– App available in the Apple Store and on Google Play
– Dimensions (L x W x H): 357 × 300 × 152 mm
