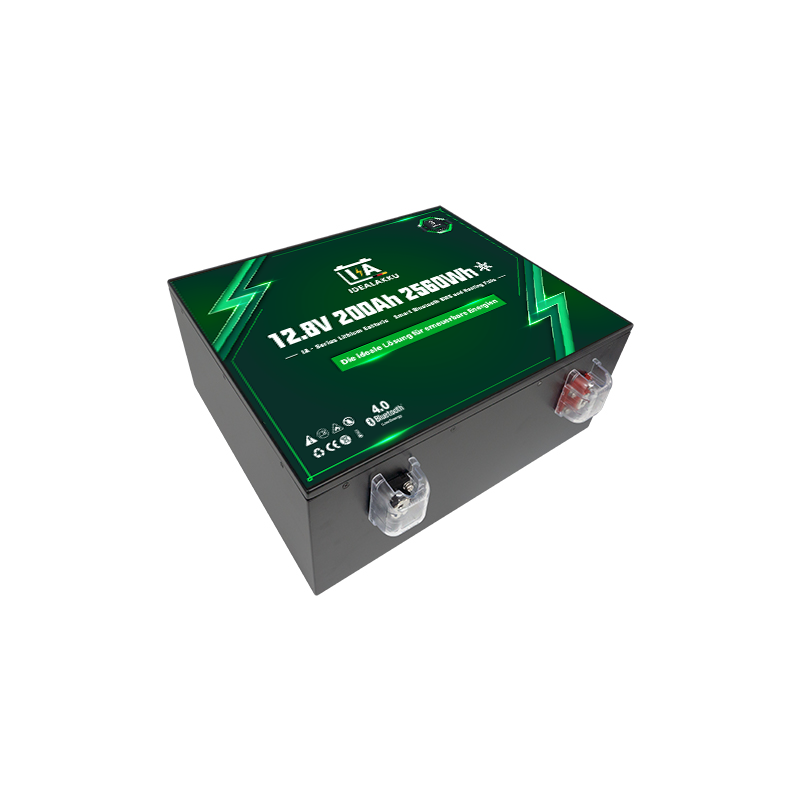

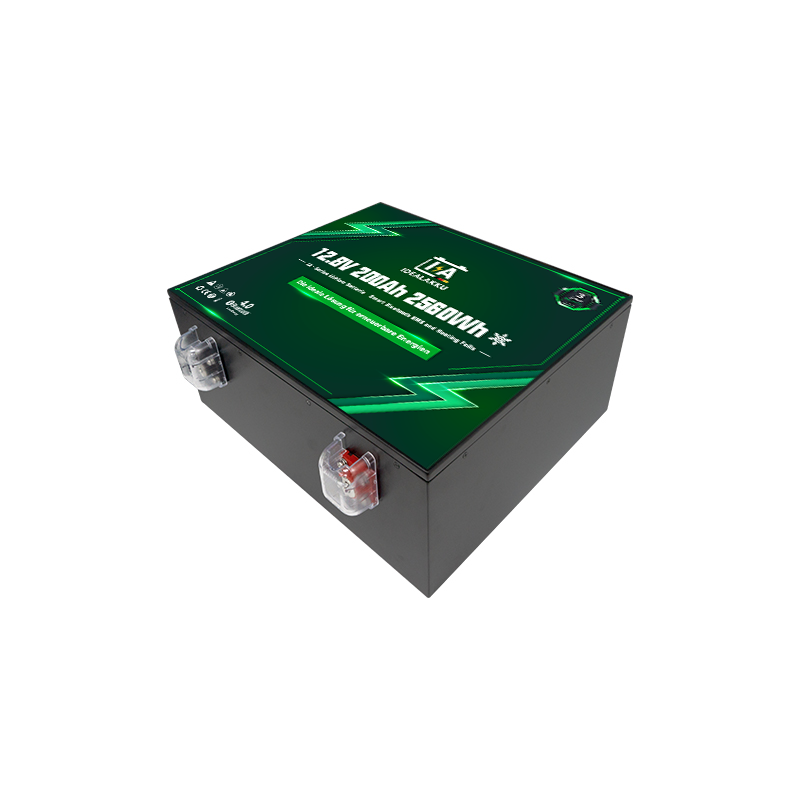

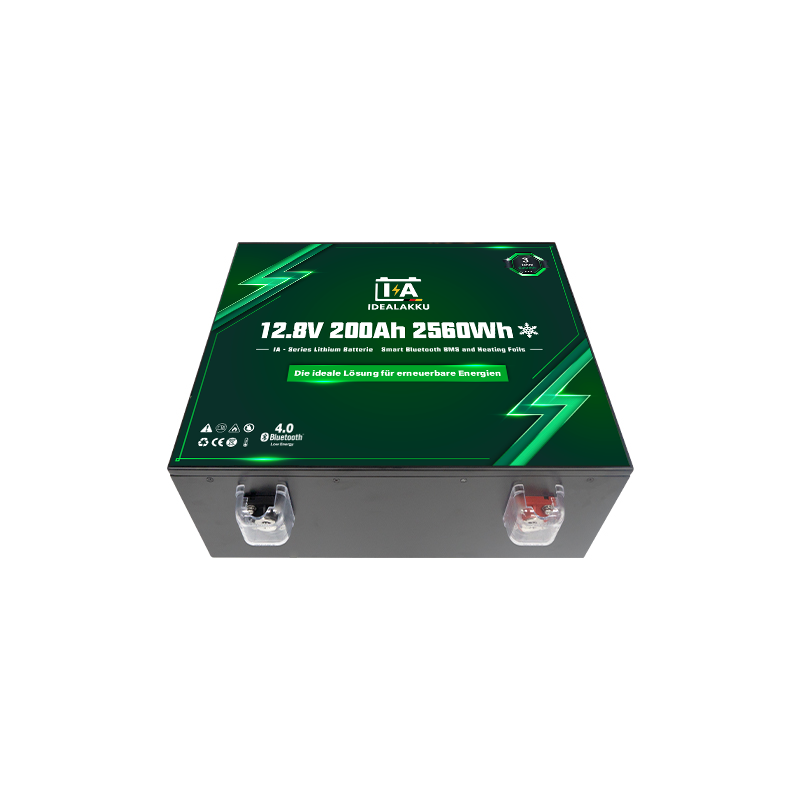

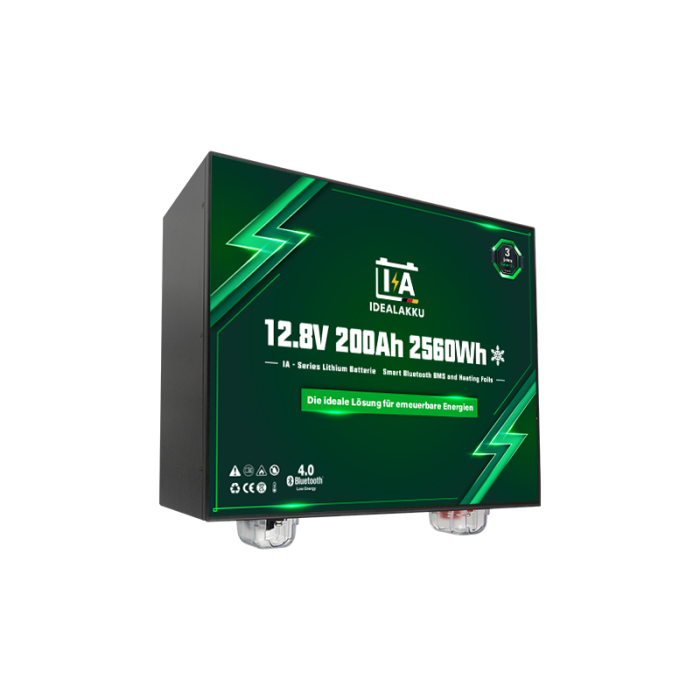

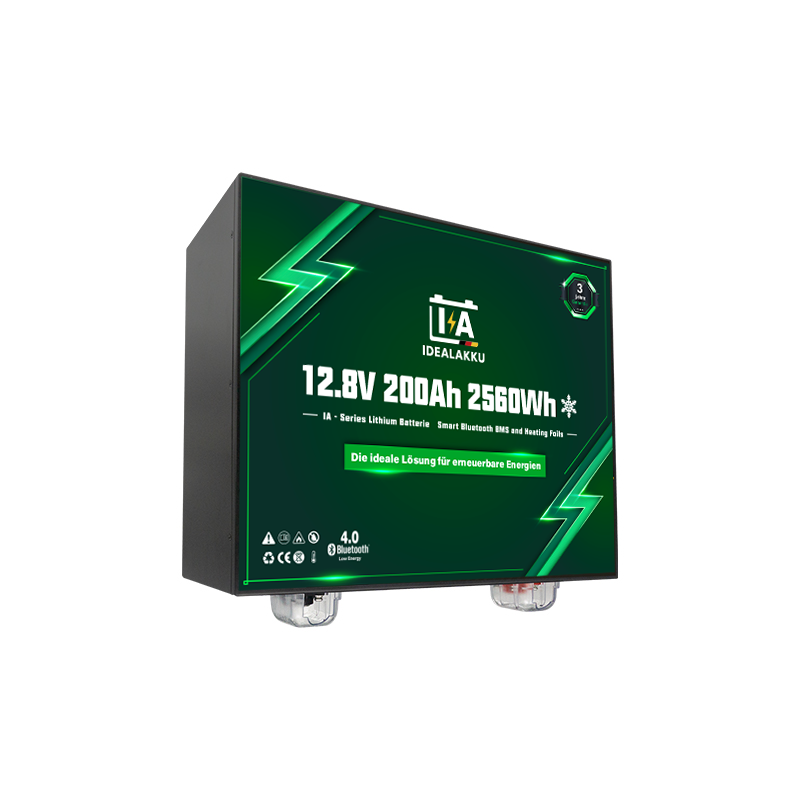

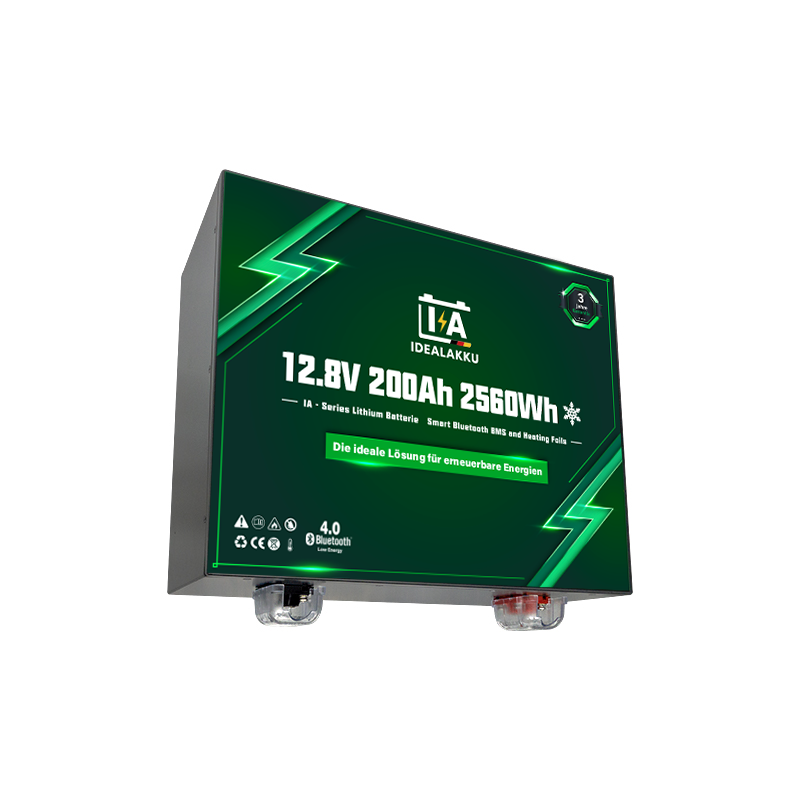

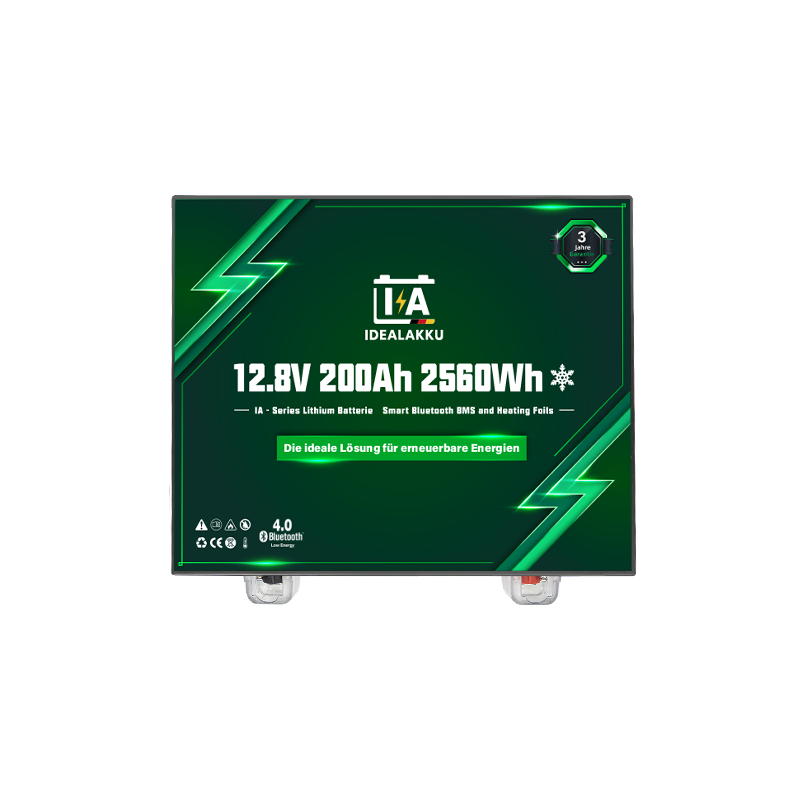

Idealakku IA SERIES Lithium Battery LiFePO4 12V 200Ah Smart BMS with Bluetooth
Model 12.8V 200Ah/2560Wh
Replaces lead-acid gel AGM battery 12V/400Ah
Cell type Prismatic cell
Dimensions with terminals (L x W x H) 357 x 300 x 152 mm
Weight (without accessories) 23.1 kg
Cycle life >6000 @ 80% DoD
Internal resistance ≤15 mΩ @ 50% SOC
Recommended charge voltage 14.6V
Float charge voltage (for standby use) 13.8 ± 0.8V
Recommended charge current 60A
Max. charge current 100A
Continuous discharge current 200A
Peak Discharge Cut-Off Current 600A (200~500ms)
Operating Voltage Range 10 – 14.6V
End of Discharge Voltage Range 10 – 11.2V

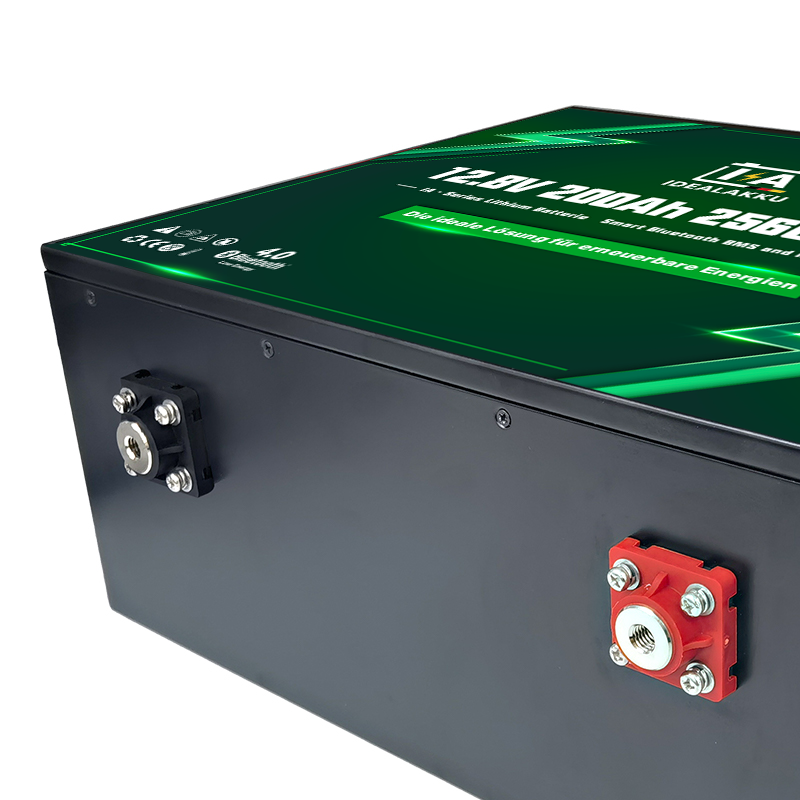

Terminal Type M8
Protection Rating IP62
Charging Temperature 0~50°C
Discharging Temperature -20~75°C
Storage Temperature -5~35°C
Storage Condition Charge the battery every 3 months
Series and Parallel Availability Maximum 4 in series and 4 in parallel
Certifications CE /UL /UN38.3 /MSDS /ROHS/UN 3480 /CLASS 9
3-Year Warranty
Eliminate Lead-Acid Battery Directly
Lighter weight and easier handling
Lithium iron phosphate is more stable
Excellent stability even under extreme load
No memory effect, no full charge and discharge cycles required
Deep, regular charging and discharging, and charging efficiency
Maximum lifespan of over 6000 cycles
Durable modular design
Screw-in design, perfectly crafted internal structure
