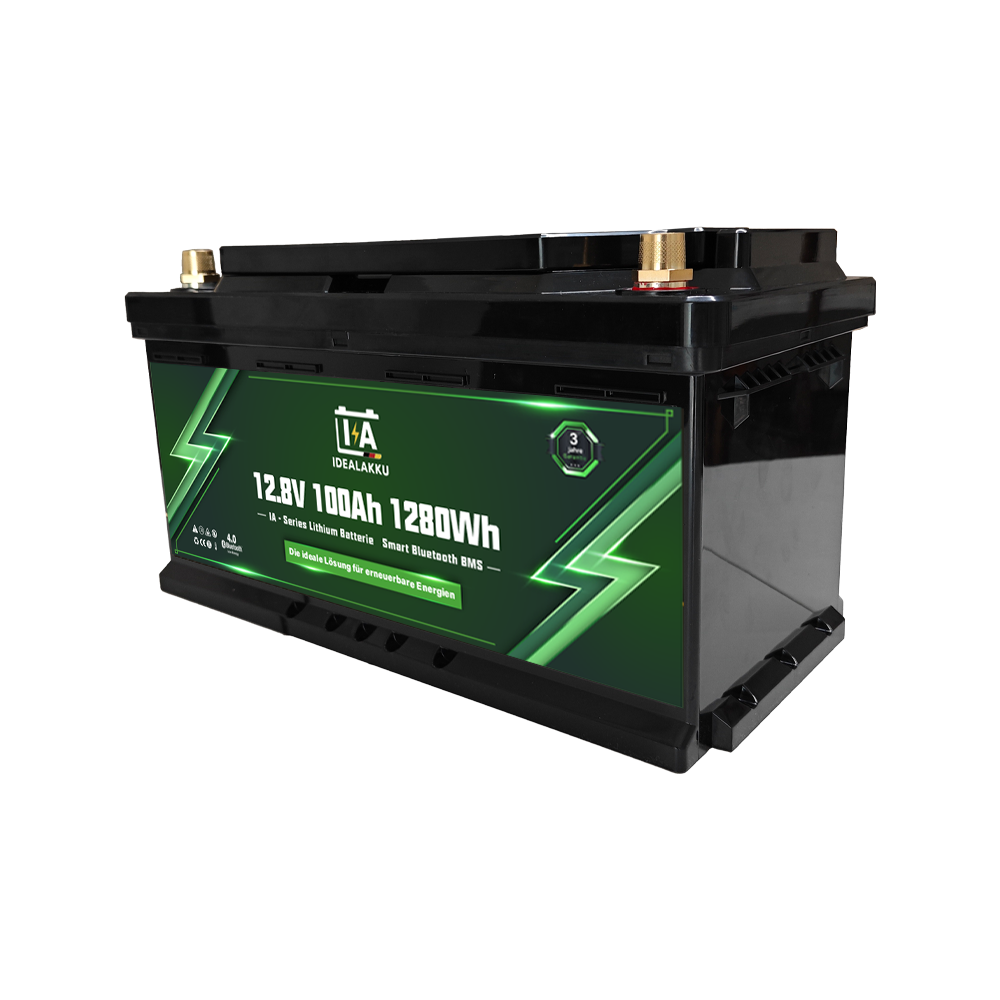

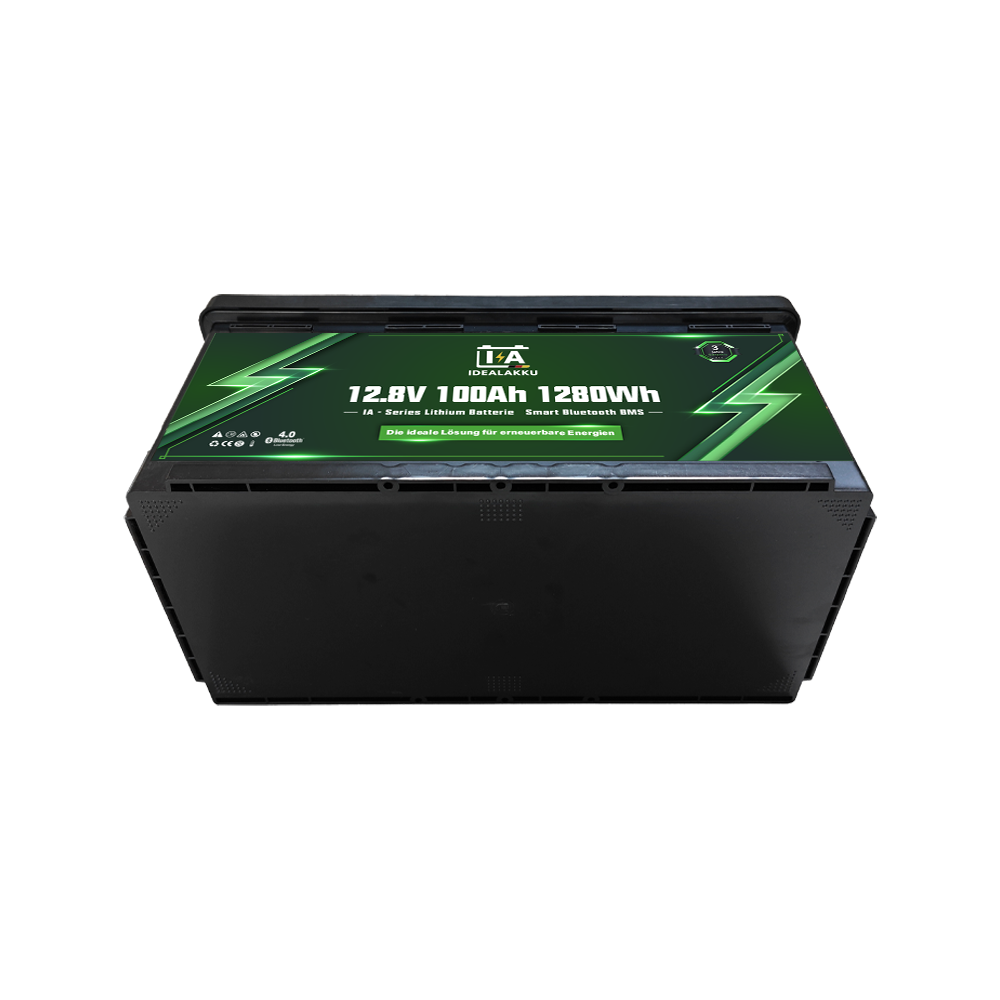

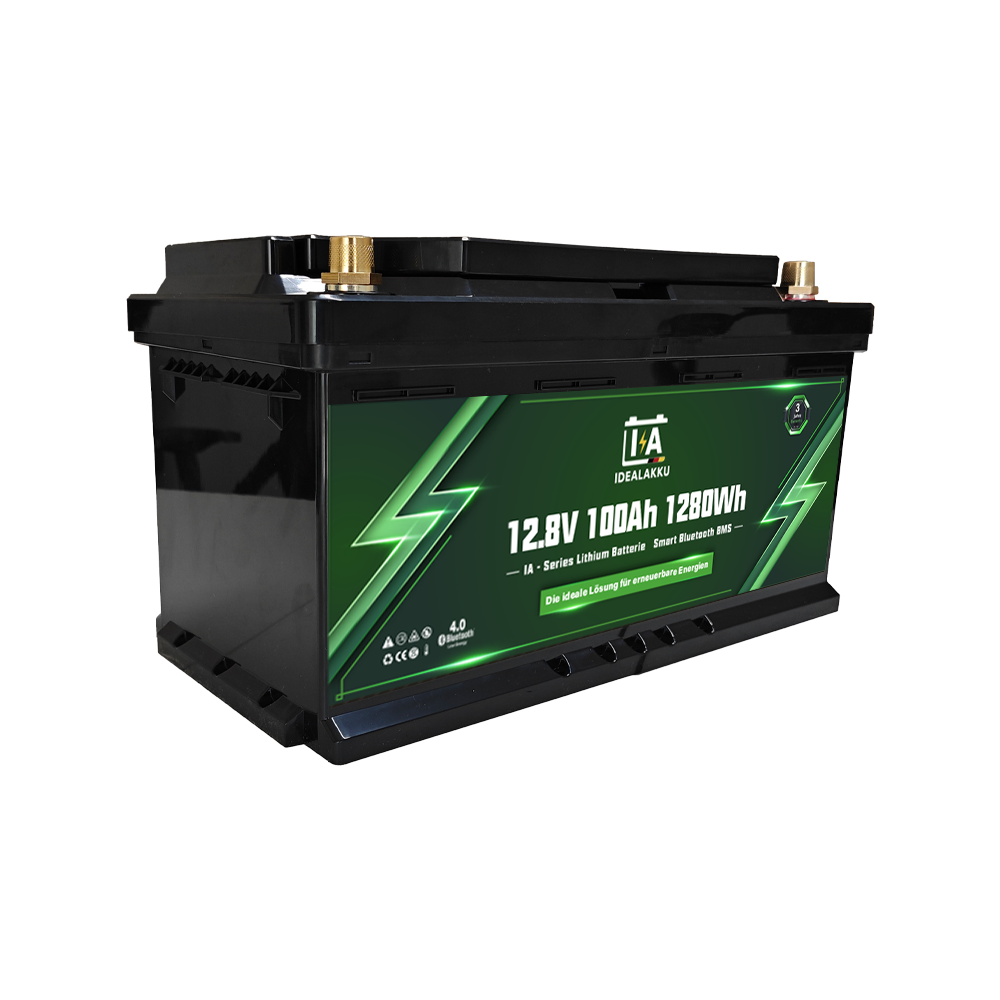

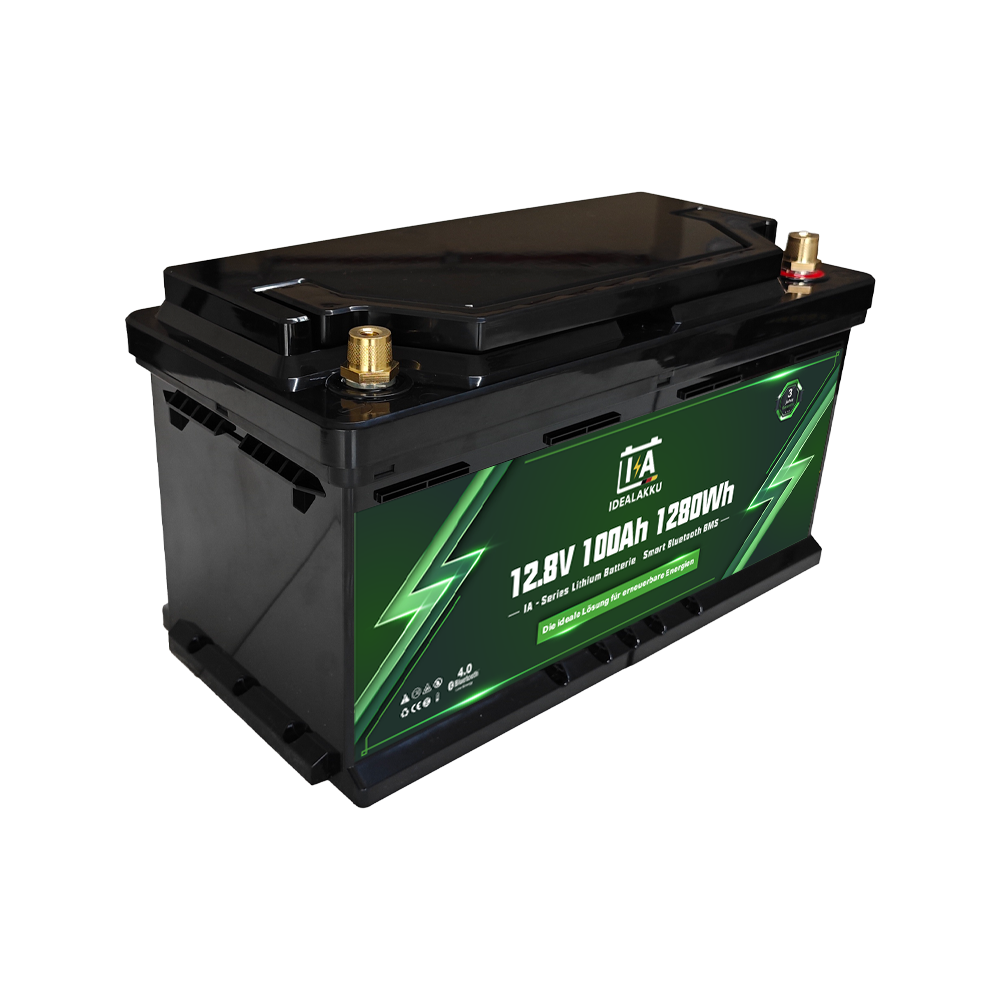

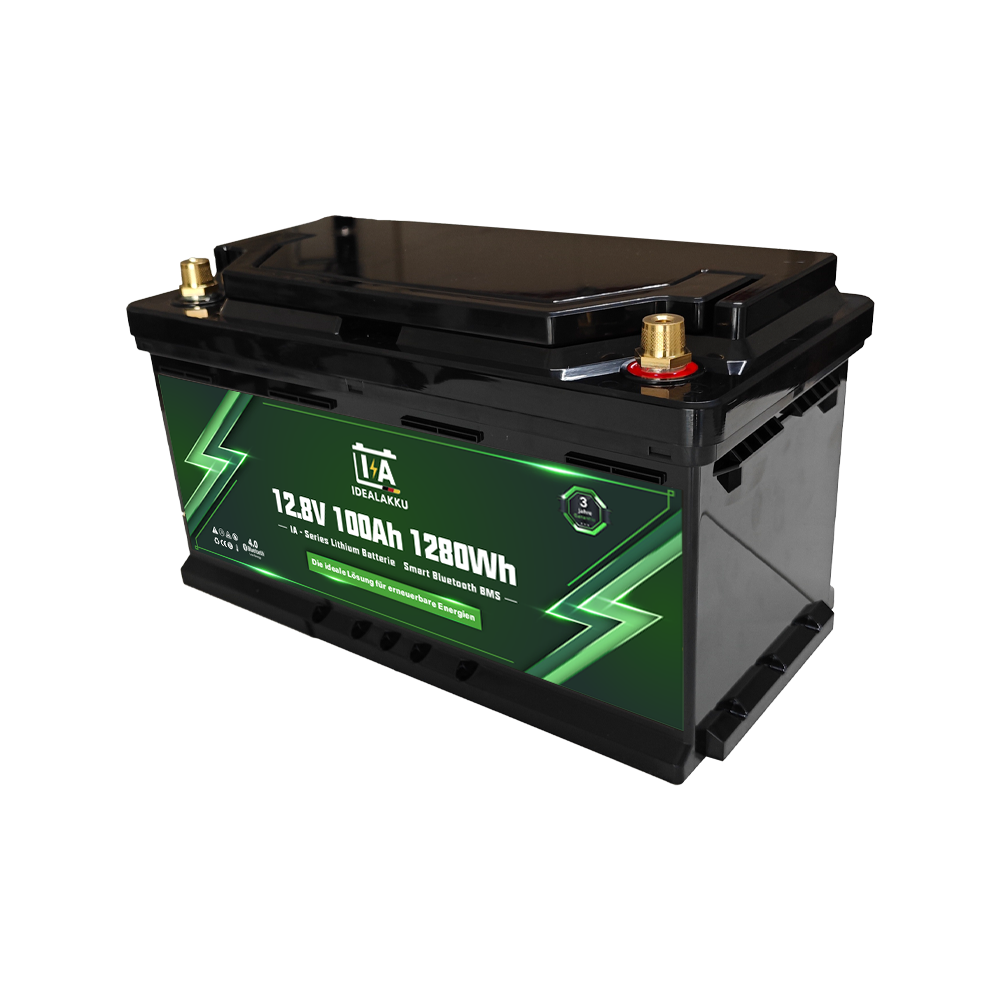

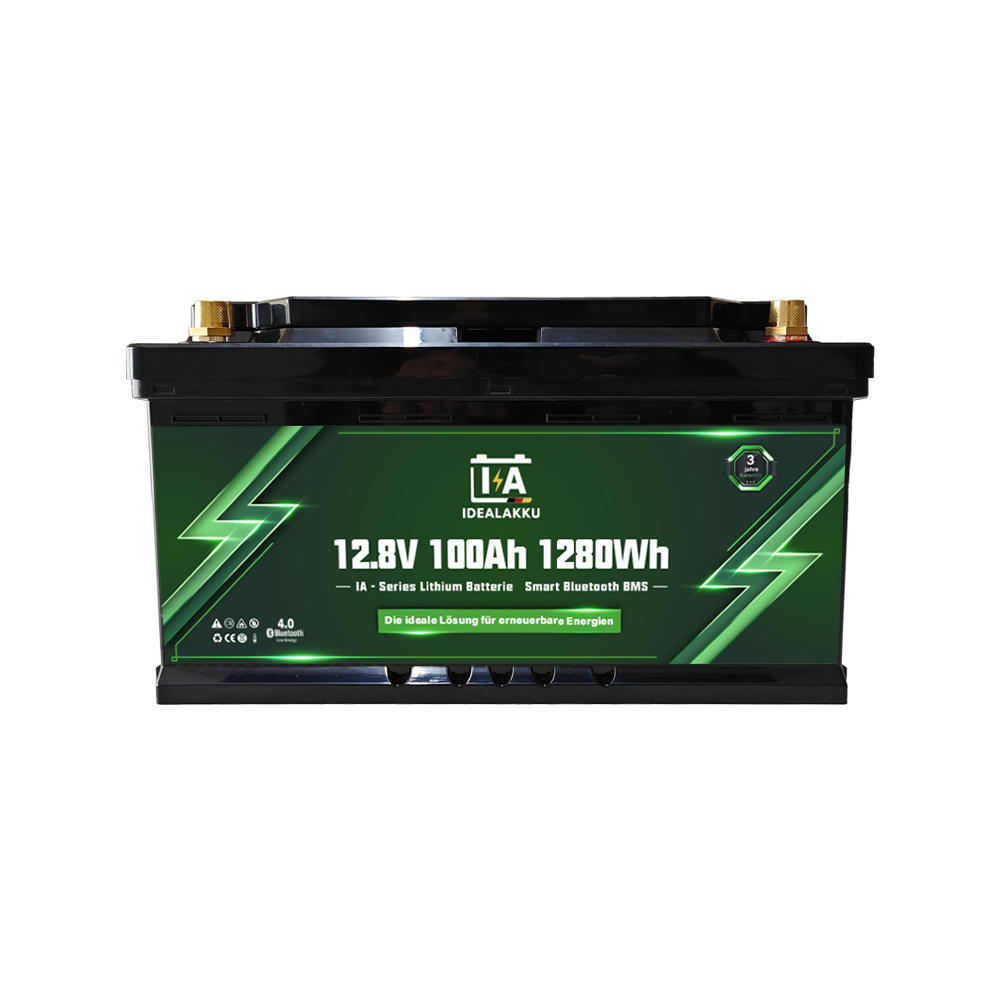

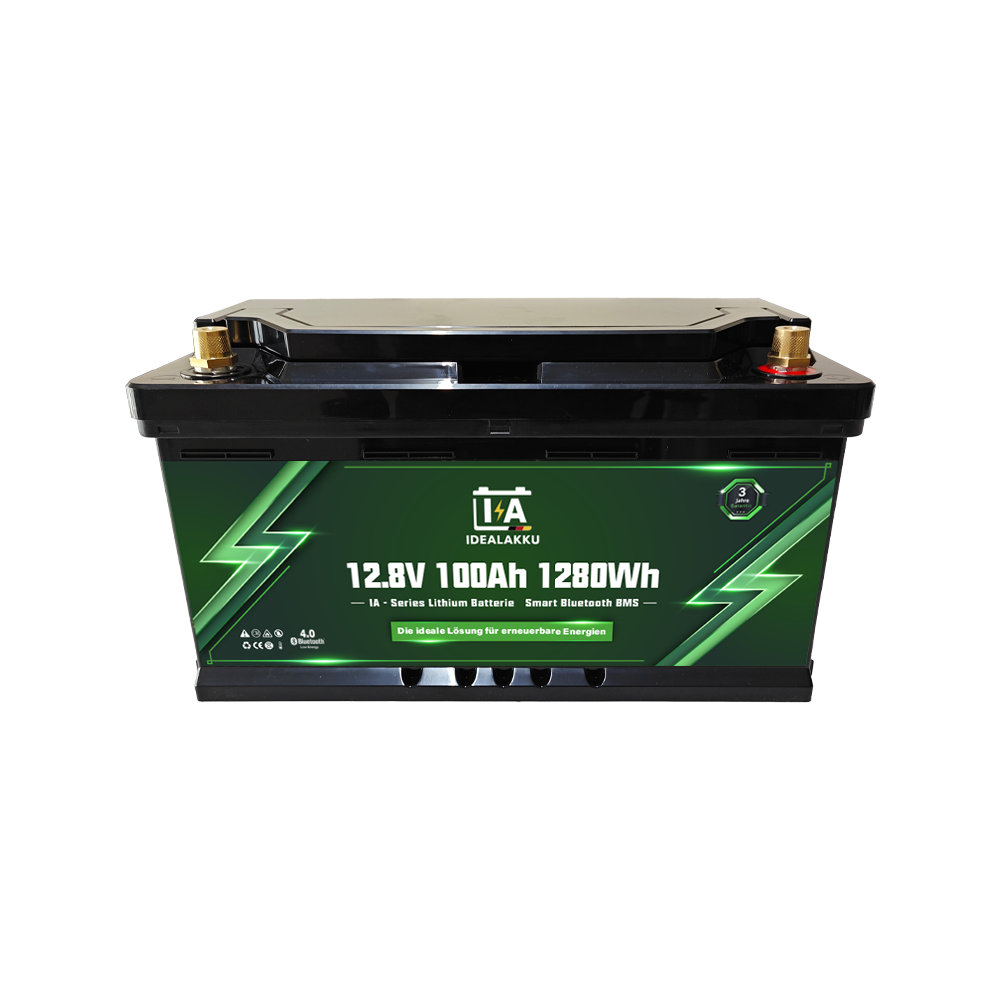

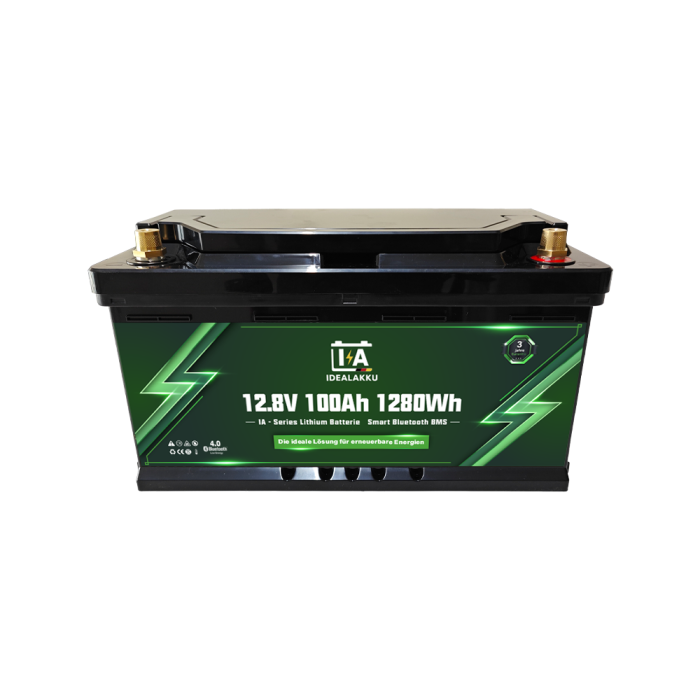

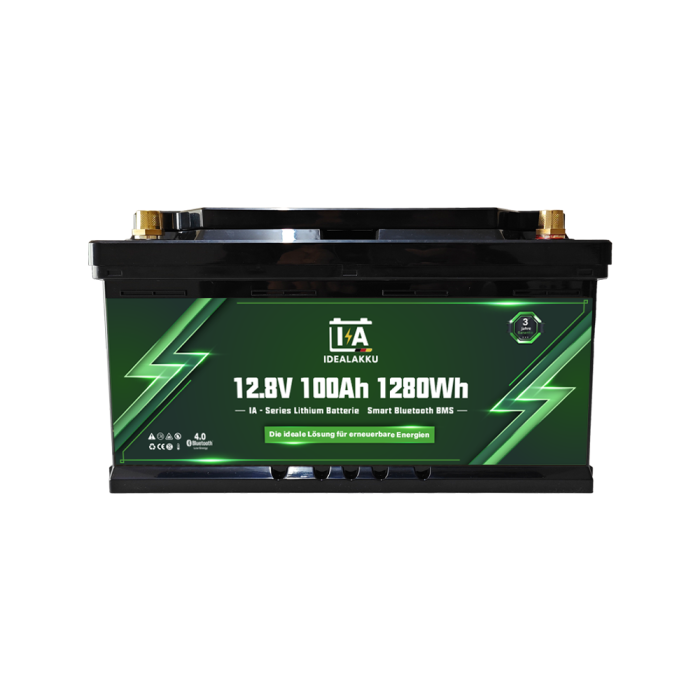

Idealakku IA SERIE Lithium Batterie LiFePO4 12V 100Ah Smart BMS mit Bluetooth
Model 12.8V 100Ah/1280Wh
Replaces Lead-Acid Gel AGM Battery 12.8V/200Ah
Cell Type Prismatic Cell
Dimensions with Terminals (L x W x H) 355 x 175 x 188 mm
Weight (without accessories) 10.2 kg
Cycle Life >6000 @ 80% DoD
Internal Resistance ≤7 mΩ
Recommended Charging Voltage 14.6V
Float Charge Voltage (for standby
use) 13.8 ± 0.8V
Recommended Charging Current 30A
Max. Charging Current 50A
Continuous Discharge Current 150A
Peak Discharge Cut-off Current 450A (200~500ms)
Operating Voltage Range 10 – 14.6V
End of Discharge Voltage Range 10 – 11.2V
Terminal Type SAE Standard
Protection Rating IP65
Charging Temperature 0~50°C
Discharging Temperature -20~75°C
Storage Temperature -5~35°C
Storage Condition Charge the battery every 3 months
Series and Parallel Availability Maximum 4 in series and 4 in parallel
Certifications CE /UL /UN38.3 /MSDS /ROHS/UN 3480 /CLASS 9
– 3-year manufacturer’s warrantyThe safest technology, with no risk of fire or explosion
– Long lifespan
– Constant improvement of storage capacity
– High stability even under extreme loads
– No memory effect, no need for complete charge and discharge cycles
– High performance even in extreme conditions
– Deep and constant discharge and charge efficiency
– Small size and light weight
