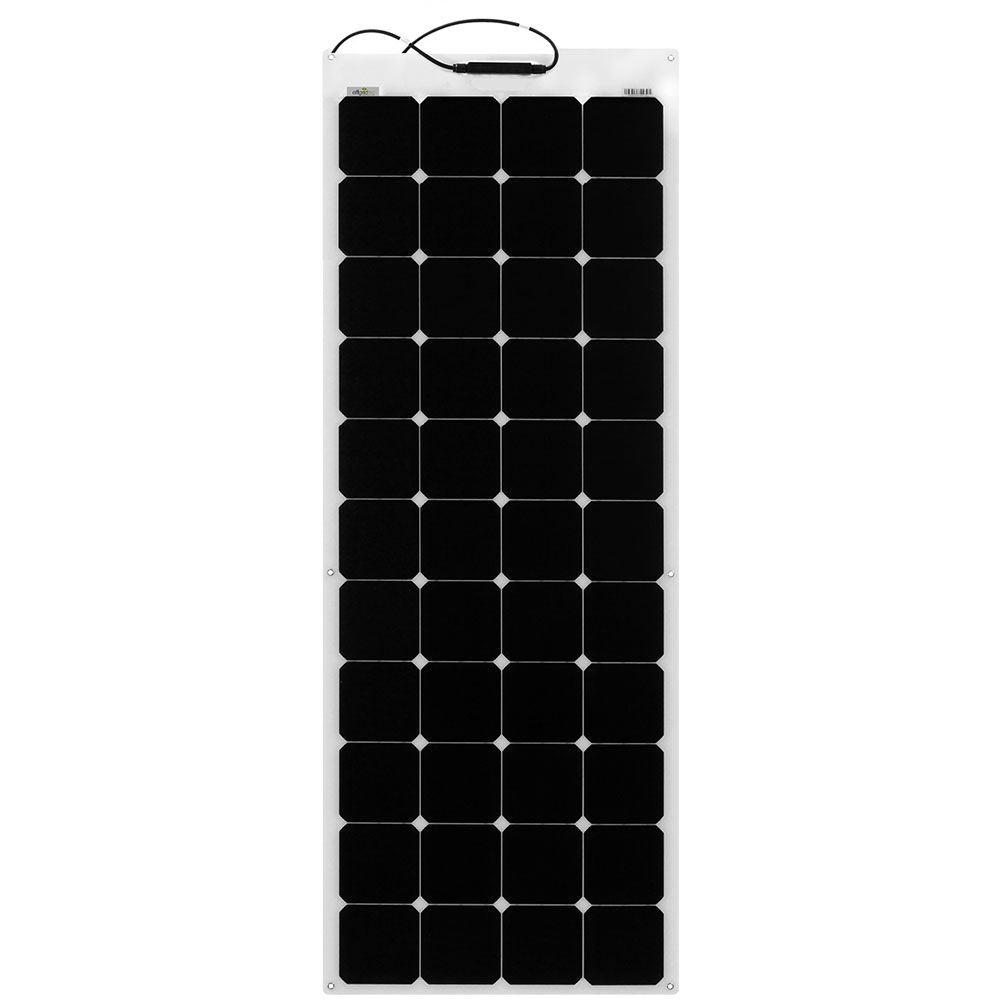

ETFE SPR-F 165W 27V marine solar cell flexible
250,00€
Ambient temperature: -40°C – +85°C Cell efficiency: >21%
Cell type: monocrystalline SPR high performance cells
Generator output wp: 165 Wp
Max. System voltage: 200 V/DC Module voltage (VMP): 27,3 V
Open circuit voltage (VOC): 32,1 V
Product Type: Marine solar panel
Short circuit current (ISC): 6,41 A
Solarmodul – eyelets: 6 ring eyes
Solar module – Walkability: walkable*
Solar module – bendability: max. 30 degrees (lengthwise)
Solar module – cable cross-section: 4 mm
Solar module – cable length: 0,8 m
Solar module – diodes installed: 2x 20SQ045 Bypass-Diode
Solar module – junction box (IP): IP67
Solar module – plug type: MC4
Solar module – size connection cable: 4 mm – 6 mm
Solar panel – size eyelets: 6,75 mm
Weight: 3,0 kg max. current (IMP): 6,05 A
semi-flexible – bendable up to a maximum of 30 degrees (long side)
easy installation of the solar panel by gluing or using the ring eyelets
specially developed for long-term marine use
ETFE high-tech plastic ensures weight savings and high light transmission of up to 96%
Junction box with IP65 protection
easy installation thanks to pre-assembled solar cable with MC4 plug and socket
small dimensions (LxWxH): 1460 x 540 x 2 mm
Solar panel can be mounted by gluing or using the ring nuts
Manufacturer part number (MPN): 010905
low weight: only 3 kg
proven Offgridtec quality: manufactured exclusively from premium raw materials of the highest quality
2-year warranty
| Βάρος | 1,1 κ. |
|---|---|
| Διαστάσεις | 668 × 834 cm |
